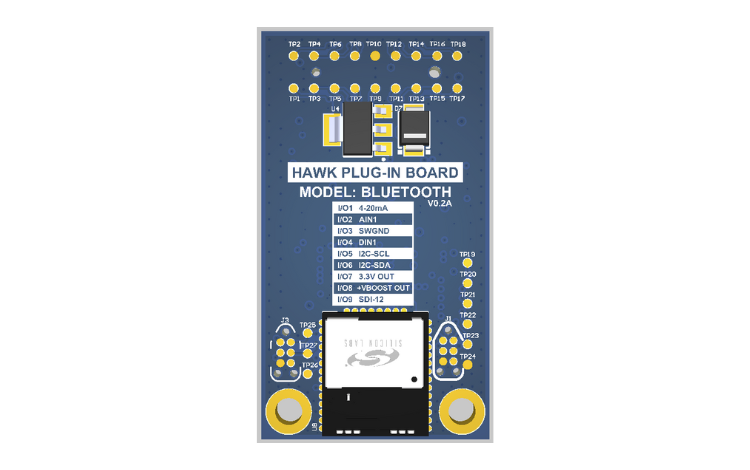

DIGITAL MATTER Hawk Bluetooth Card

Bluetooth Module

• BGM240PA22VNA3

Analog Input

• 1 x Analog Input (0-30V range)

Digital Input

• 1 x Digital Input with configurable pull up/pull down
  0-40V DC input range
  On/Off thresholds: On >2V, Off <1V
  Can be used for pulse counting (max 40Hz)

Digital Output

• 1 x Switched Ground (1A current limit)

Power Out

• 3.3V Power Out for Sensors

Switched Power Out

• 5V or 12V Selectable Power Out for Sensors

SDI-12

• Yes

I²C SDA/SCL

• Yes

4-20mA

• Yes
