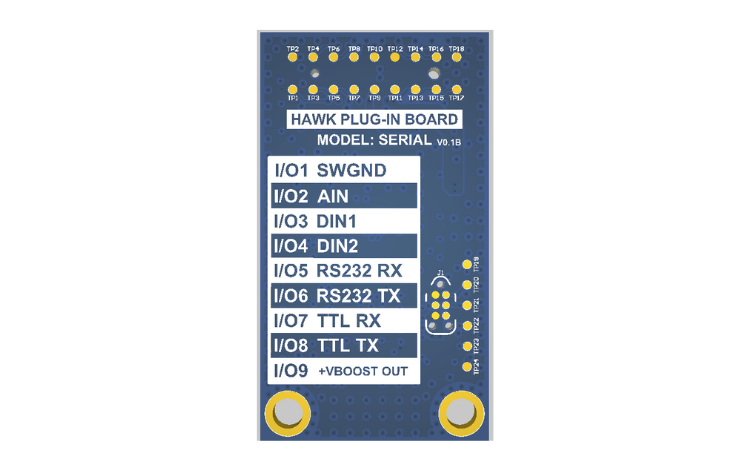

DIGITAL MATTER Hawk Serial RS232 / TTL card

Analog Input

• 1 x Analog Input (0-30V range)

Digital Inputs

• 2 x Digital Inputs with configurable pull up/pull down
  0-40V DC input range
  On/Off thresholds: On >2V, Off <1V
  Can be used for pulse counting (max 40Hz)

Digital Output

• 1 x Switched Ground (1A current limit)

Switched Power Out

• 5V or 12V Selectable Power Out for Sensors

RS232 TX/RX

• Yes

TTL TX/RX

• Yes
